Urodynamics Machine is according with the principle of mechanics fluid, it is a science of adopting method of electrophysiology and sensor technology to research the process of urine storage and voiding and its dysfunction. It records the process of voiding dysfunction by mechanics fluid, electrophysiology and computer technology. Then analyze, judge and get whole report by computer specialized software. Urodynamic Analyzer System is dedicated equipment of Urology Dept.
Urodynamics is the investigation of the function of the lower urinary tract - the bladder and urethra - using physical measurements such as bladder pressure and flow rate as well as clinical assessment.
Urodynamic studies provide extremely valuable diagnostic data for any of the following bladder dysfunctions: Urge Incontinence, Stress Incontinence, Urinary Retention, Urinary Frequency, Nocturia, Hesitancy, and all other storage and micturition issues.

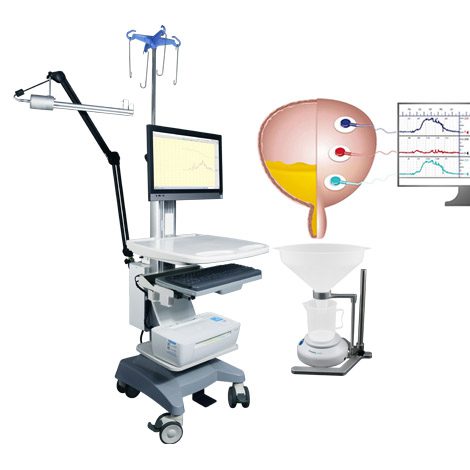

Typical urodynamic testing consists of uroflowmetry, filling cystometry, pressure-flow study, urethral pressure profiles (UPP), valsalva leak point pressure (VLPP), and electromyography (EMG).

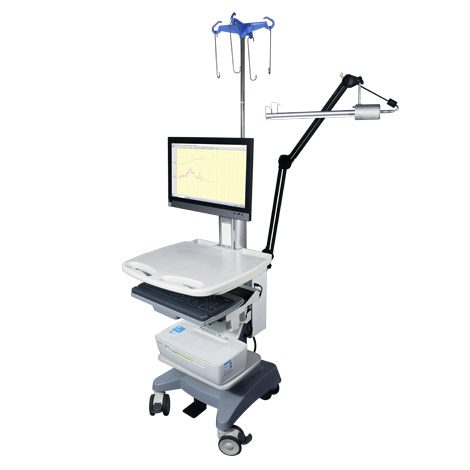

Urodynamics Machine offers the complete solution for urodynamic testing. Our diagnostic equipment can be found in hospitals, private clinics, universities and research centers. We work with leading clinician-researchers and local universities to incorporate the most recent advancements and technical knowledge into our Urodynamic Detection products while reflecting practical realities of the typical pelvic floor clinic.
● It can adjust the angle all dimensionally by unique traction system
● It adopts the perfusion style of formlessness technology to realize constant current, the produced curve will make the diagnosis more accuracy and relaxed
● The weighing urine flow rate test make the examination more sensitive and accurate
● We manufacture the consumable by our factory, so it is good quality and low cost
● The urine collector is wirelessly connected, compact and lightweight,easy to use
Uroflowmetry measuring range
a) Flow: 0mL~1000mL, Error range ± 2%
b) Urination time: 0s~240s, Error range ± 1%
c) Average urinary flow rate: 0mL/s~50 mL/s, Error range ±5%
Pressure measuring range
Pressure: -50cmH20(-4.9kPa)~200cmH20(19.6kPa) Error range: ± 3%
Dragger
a) Length: ≥280mm
b) 4 Speeds: 0.5mm/s, 1.0mm/s, 2.0mm/s, 4.0mm/s, Error range ± 3%
Filling pump
Range of filling rate: 2mL /min~10mL/min (1mL /min each time)
10mL/min~80mL/min (5mL /min each time)
Syring pump
Injection speed: 2mL/min~5mL/min (1mL /min each time), error range ±3%
EMG testing
a) Range for responsing: 20μV~1mV
b) Length of electrode wire: ≥180cm
